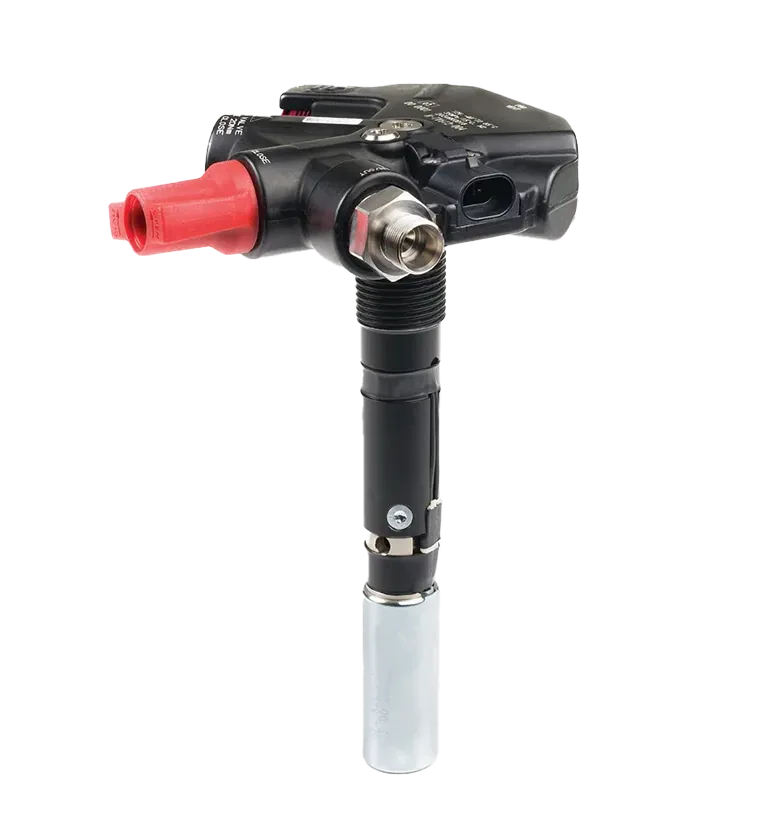

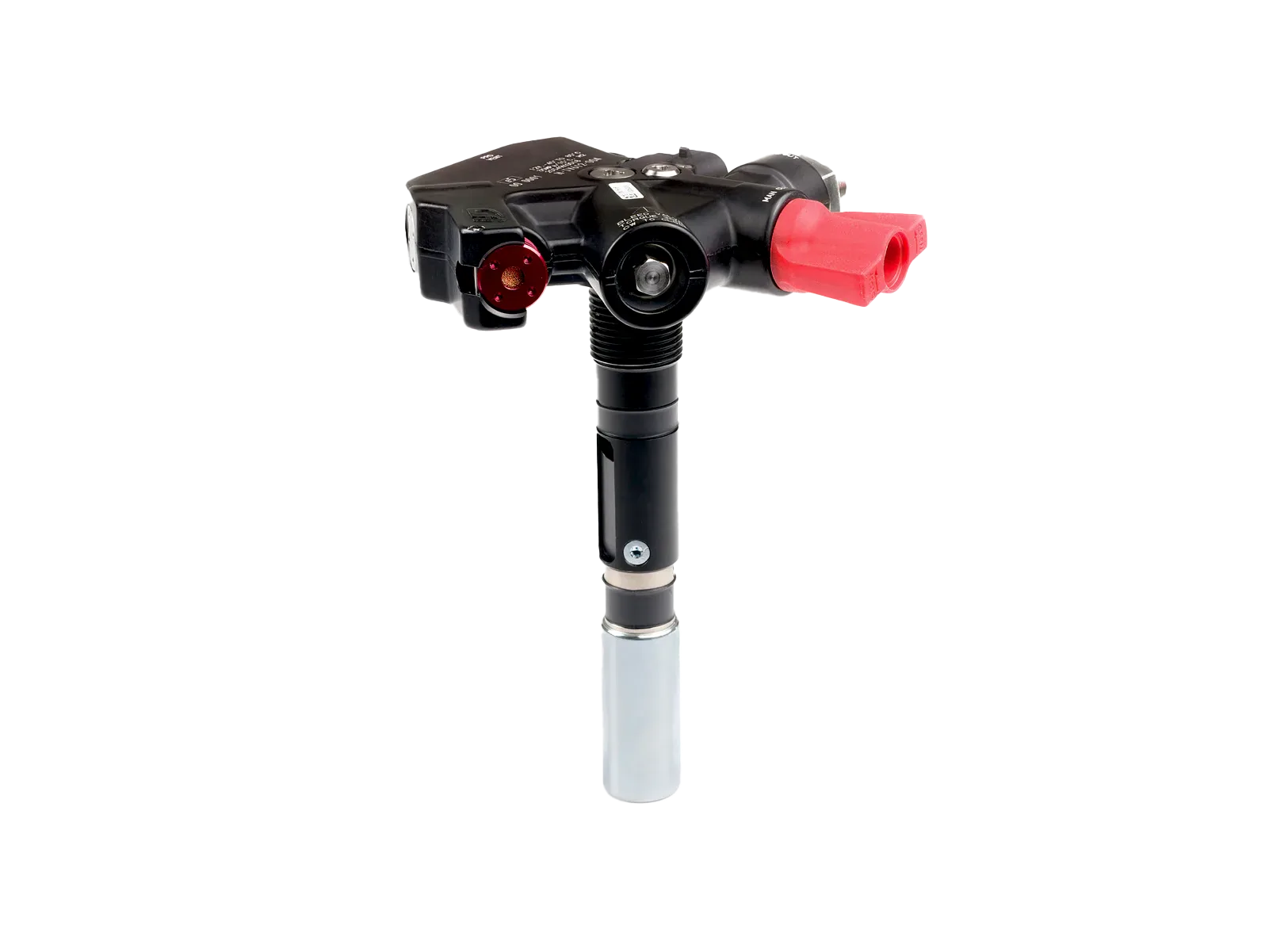

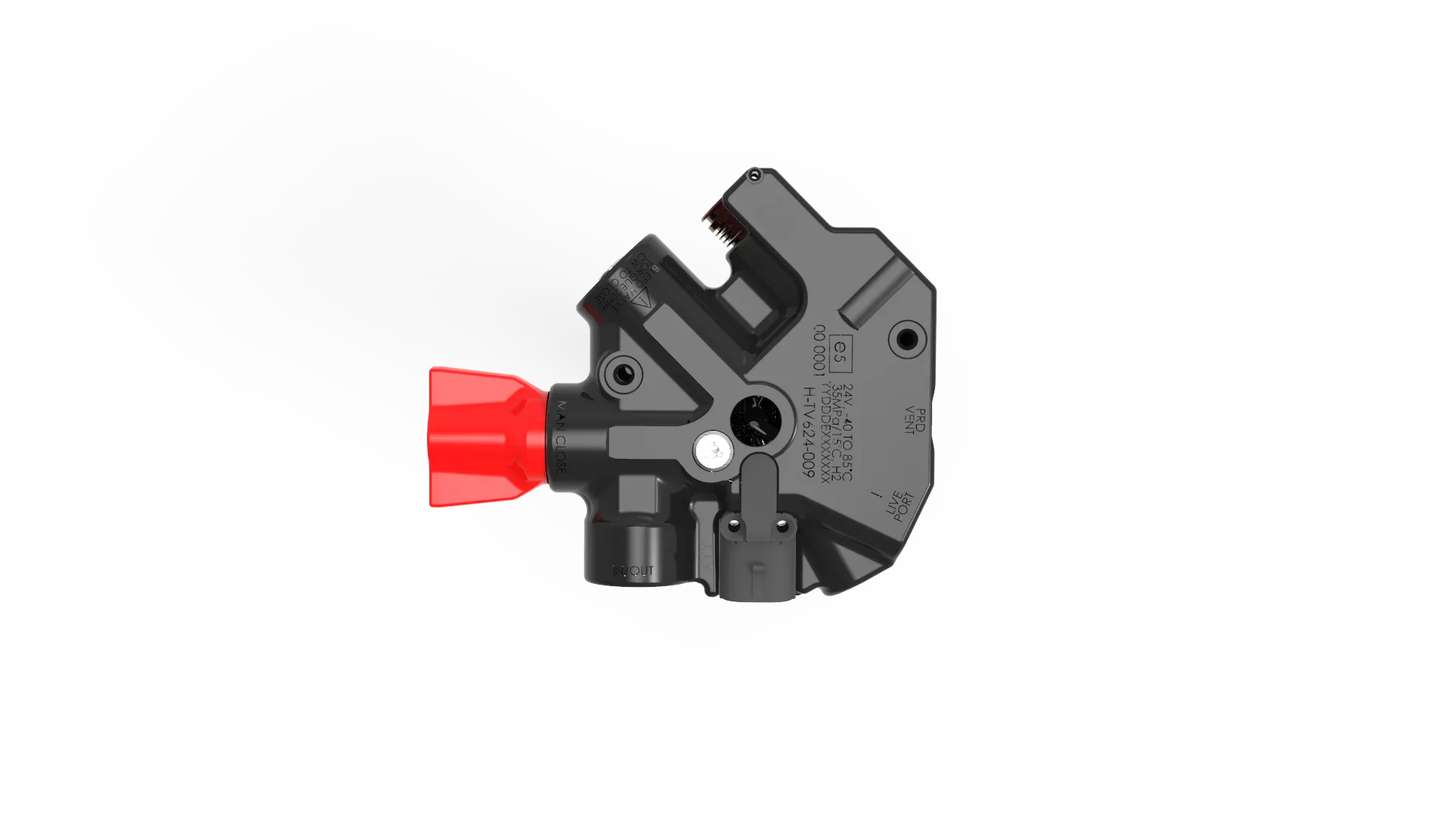

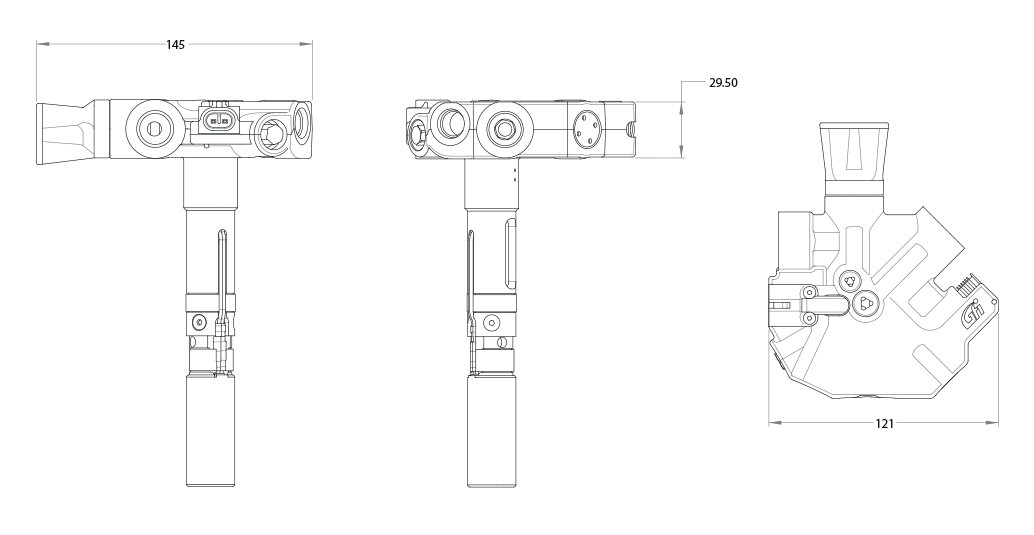

Designed for 1-1/8” hydrogen tank necks, this low-profile tank valve offers robust integration and safety features, making it a preferred choice for OEM hydrogen storage systems. Built on proven 2” valve technology, it includes an in-tank solenoid for improved durability and crash protection.
Design
- Low-profile architecture to maximize usable tank length
- Based on proven 2” tank valve platform
- Lightweight aluminum body for weight-sensitive applications
- 1-1/8” tank neck compatibility
- Commonly paired with temperature-sensing PRD end plugs
Performance & Options
- Integrated high-flow pilot-activated pipe-away TPRD (110 ± 5 °C)
- In-tank solenoid minimizes exposure to impact and corrosion
- Manual shutoff valve for maintenance control
- Bleed valve and check valve functionality included
- Optional pressure sensor and live ports
- Available in both 12 V and 24 V solenoid configurations
- Designed to operate from -4 °C to +85 °C
- Certified to HPRD1, HGV 3.1, EC 79, ISO 19882, UN GTR 13, PED, EU 535, ECE R134
H-TV-600 Series |
|||
|---|---|---|---|
General Information |
|||
| Application | Hydrogen Tank Valve | ||
| Design | Automatic valve, internal solenoid | ||
| Body Material | Aluminum, anodized | ||
| Fuel Type | Hydrogen per SAE J2719 and ISO 14687 | ||
| Nominal Working Pressure | 35 MPaG | ||
| Max Working Pressure | 43.8 MPaG | ||
| Operating Temperature | -40 °C to +85 °C | ||
| Flow Coefficient (CV) | Fueling and defueling: > 0.5 | ||
| T-PRD Activation | 110 +/- 5 °C | ||
| T-PRD Orifice | up to 8 mm equivalent diameter | ||
| Check Valve Function (Fill Path) | Opening Pressure < 0.3 MPa | ||
Electrical |
|||
| Coil Nominal Voltage | 12 V | 24 V | |
| Nominal Coil Resistance At 20 °C | 19.2 Ω | 71.8 Ω | |
| Coil Nominal Power at 20 °C | 7.5 W | 8 W | |
Connections / Options / Certifications |
|||
| Solenoid | Mating connector: AMP Superseal 1.5, 2 pin; 282080-1 | ||
| Cylinder Connection | 1 1/8-12 UNF-2B | ||
| Inlet / Outlet Port Type | 9/16-18 UNF-2B; others available | ||
| TPRD Vent Port Type | 3/4-16 UNF-2B (others possible) | ||
| Options |
|
||
| Certifications | HPRD1, HGV 3.1, EC79, ISO 19882, UN GTR 13, PED, EU 535 and R134 | ||
