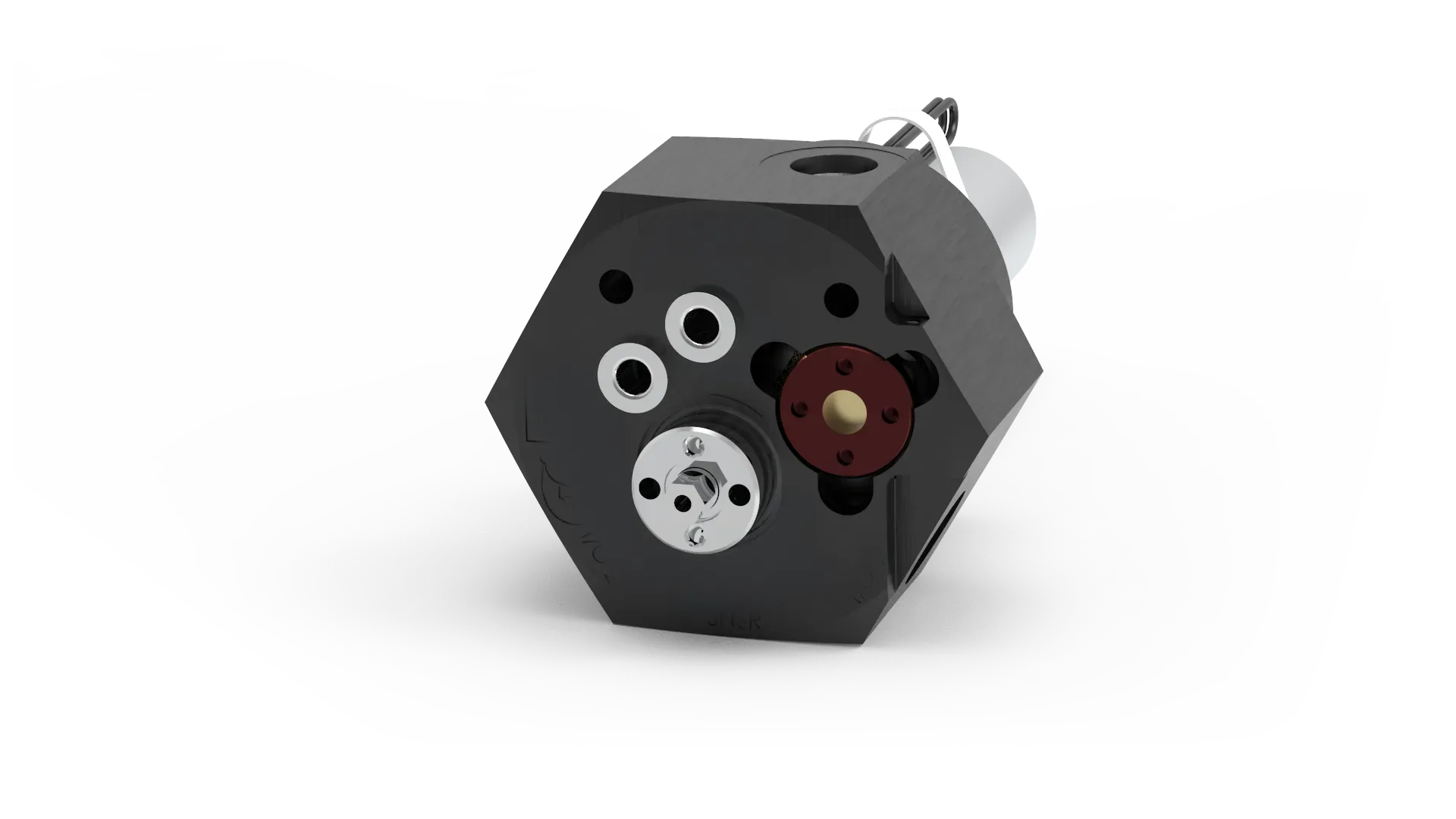

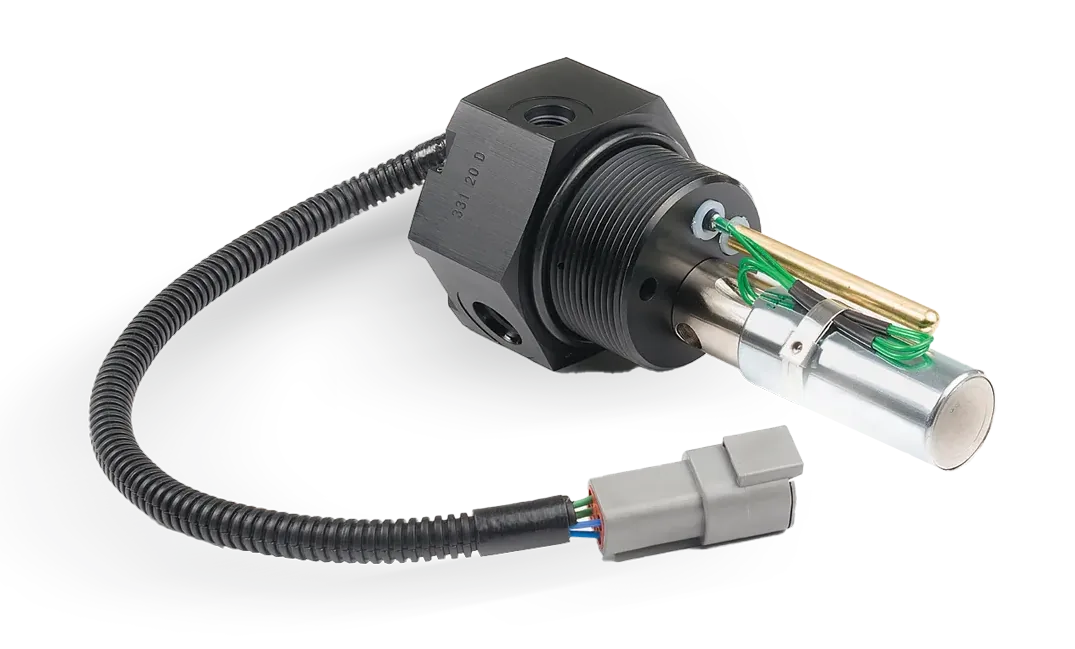

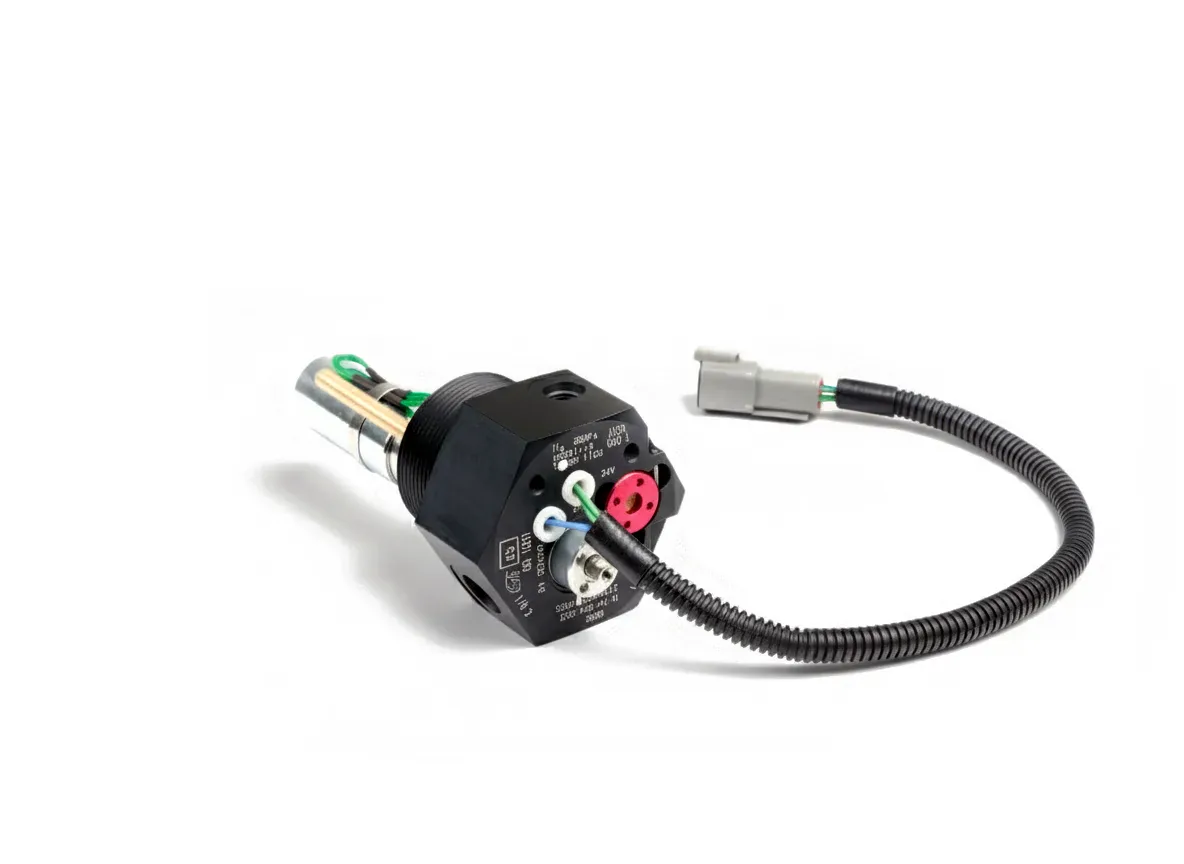

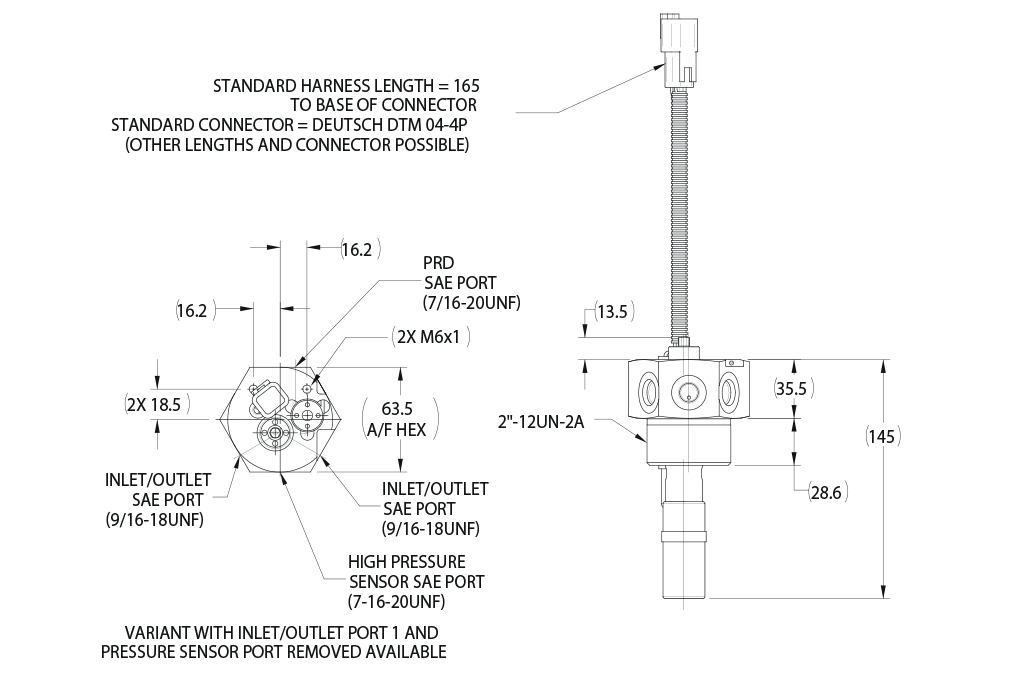

Innovative tank valve that mounts the solenoid inside the tank to protect it from external impact and risk of corrosion/ environmental exposure. Temperature sensor mounted inside the tank for fuel dispenser feedback and fuel gauge accuracy. Also includes integrated PRD, manual shutoff valve and check valve function.
Design
- Lightweight construction for weight-sensitive applications
- 2” tank neck geometry
- Nominal working pressure of 35 MPa
Performance & Options
- Optional EFV module and filter module
- Two I/O ports and optional pressure sensor port
- Integrated in-tank solenoid for impact and corrosion protection
- Pipe-away TPRD (110 ± 5 °C)
- Temperature sensor for dispenser and gauge accuracy
- Integrated manual shutoff, PRD, and check valve functions
- Available in both 12 V and 24 V solenoid configurations
- Designed to operate from –40 °C to +85 °C
- Certified to HPRD1, EC 79, GB/T 35544, ECE R134, UN GTR 13, EU 535, ISO 19882, PED
H-TV-300 Series |
|||
|---|---|---|---|
General Information |
|||
| Application | Hydrogen 2" tank valve | ||
| Design | Automatic valve, internal solenoid | ||
| Body Material | Aluminum, anodized | ||
| Fuel Type | Hydrogen per SAE J2719 and ISO 14687 | ||
| Nominal Working Pressure | 35 MPa(g) | ||
| Max Working Pressure | 43.8 MPa(g) | ||
| Operating Temperature | -40 °C to +85 °C | ||
| Flow Coefficient (Cv) | Fueling and defueling: > 0.5 | ||
| T-PRD Activation | 110 °C ± 5 °C | ||
| T-PRD Orifice | Up to 5.7 mm equivalent diameter | ||
| Check Valve Function (Fill Path) | Opening pressure < 0.3 MPa | ||
Electrical |
|||
| Coil Nominal Voltage | 12 V | 24 V | |
| Nominal Coil Resistance @ 20 °C | 19.2 Ω | 71.8 Ω | |
| Coil Nominal Power @ 20 °C | 7.5 W | 8 W | |
| Thermistor R25 °C | 2,700 Ω ± 2% | ||
| Thermistor Type | NTC | ||
Connections / Options / Certifications |
|||
| Electrical Connector | Mating connector: Deutsch DTM 06-4S; others possible | ||
| Cylinder Connection | 2-12 UNF-2B | ||
| Inlet / Outlet Port Type | 9/16-18 UNF-2B | ||
| TPRD Vent Port Type | 7/16-20 UNF-2B | ||
| Pressure Sensor Port Type | 7/16-20 UNF-2B | ||
| Options |
|
||
| Certifications | HPRD1, EC 79, GB/T 35544, ECE R134, UN GTR 13, EU 535, ISO 19882, PED | ||
