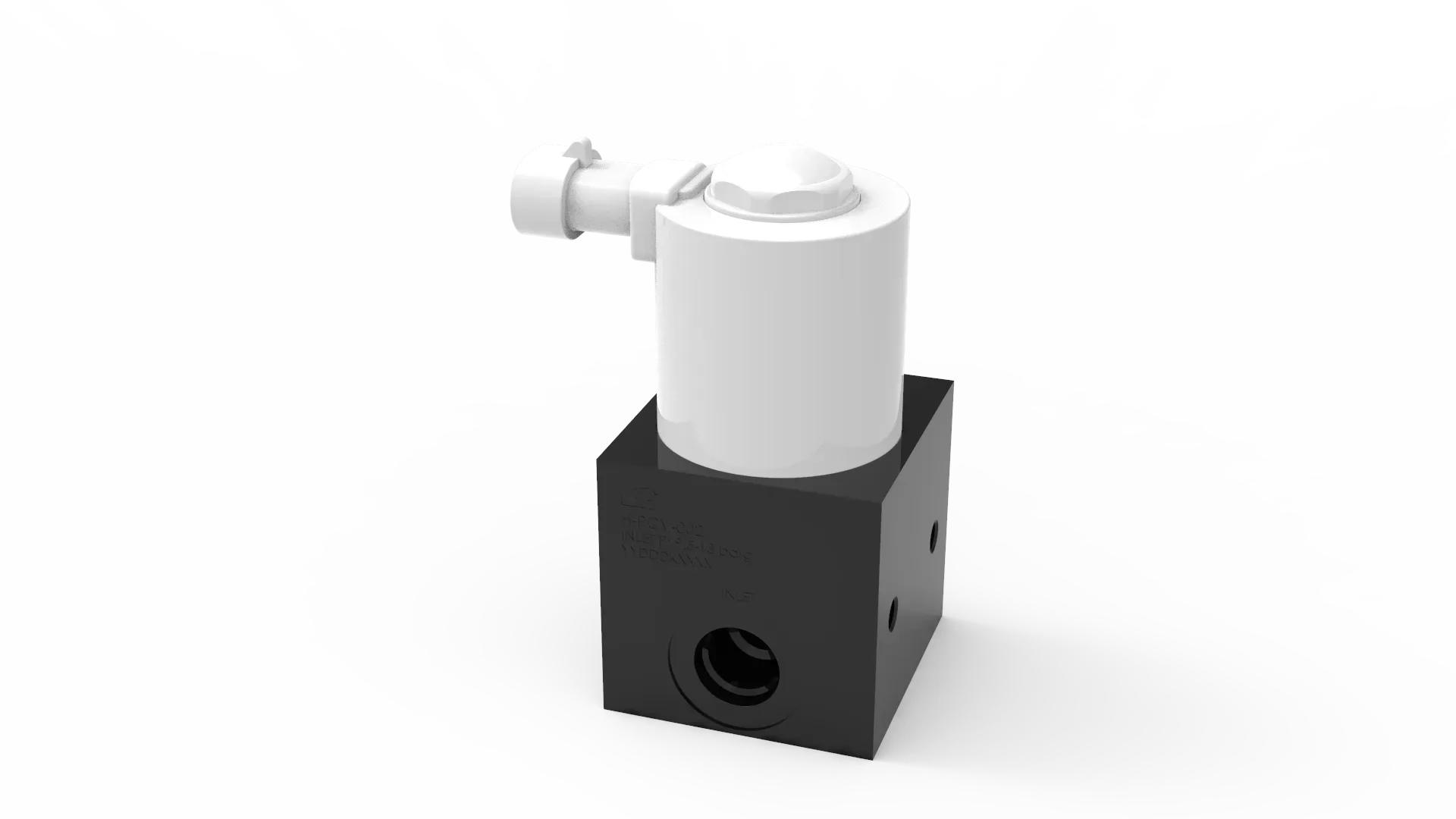

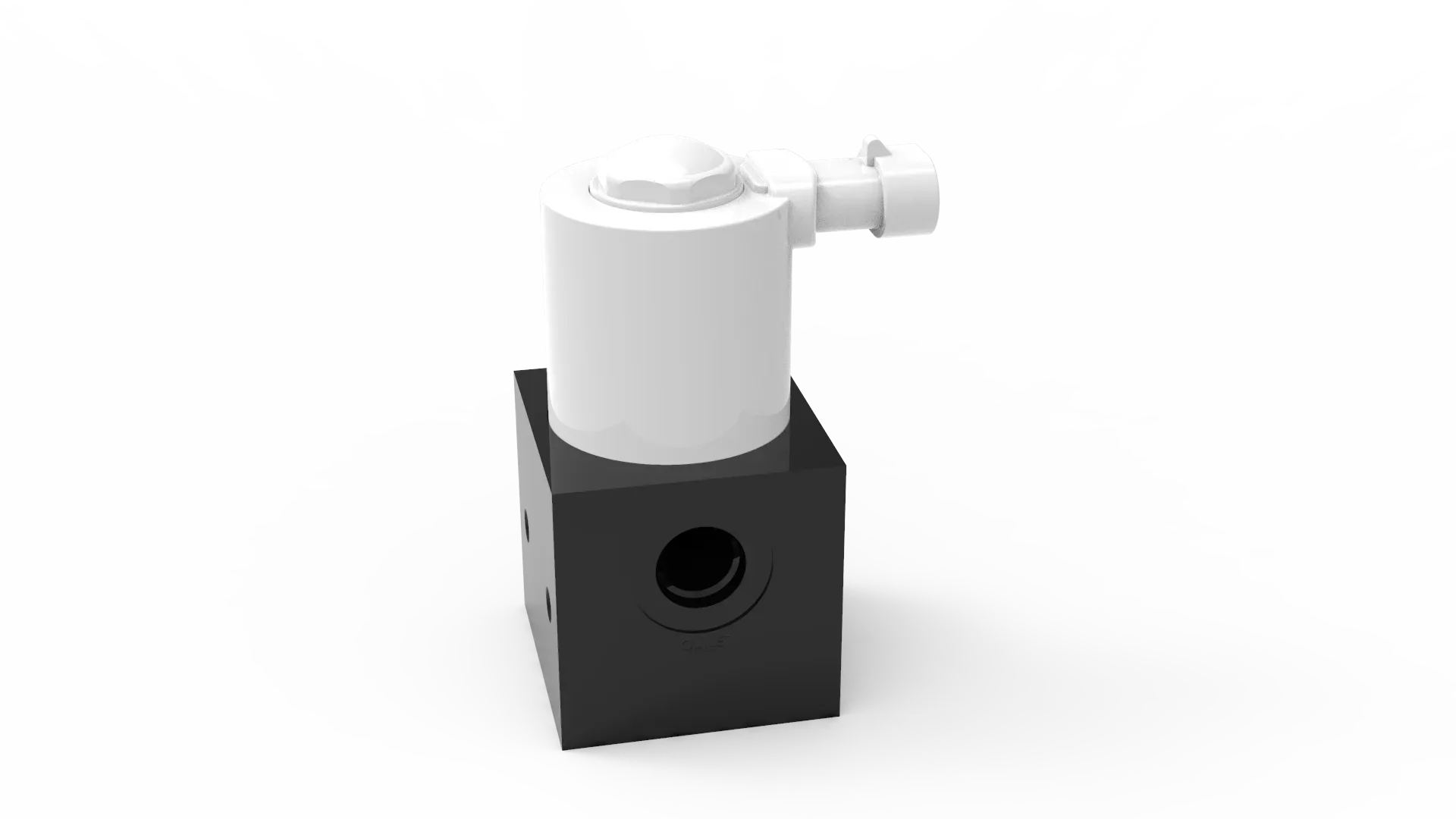

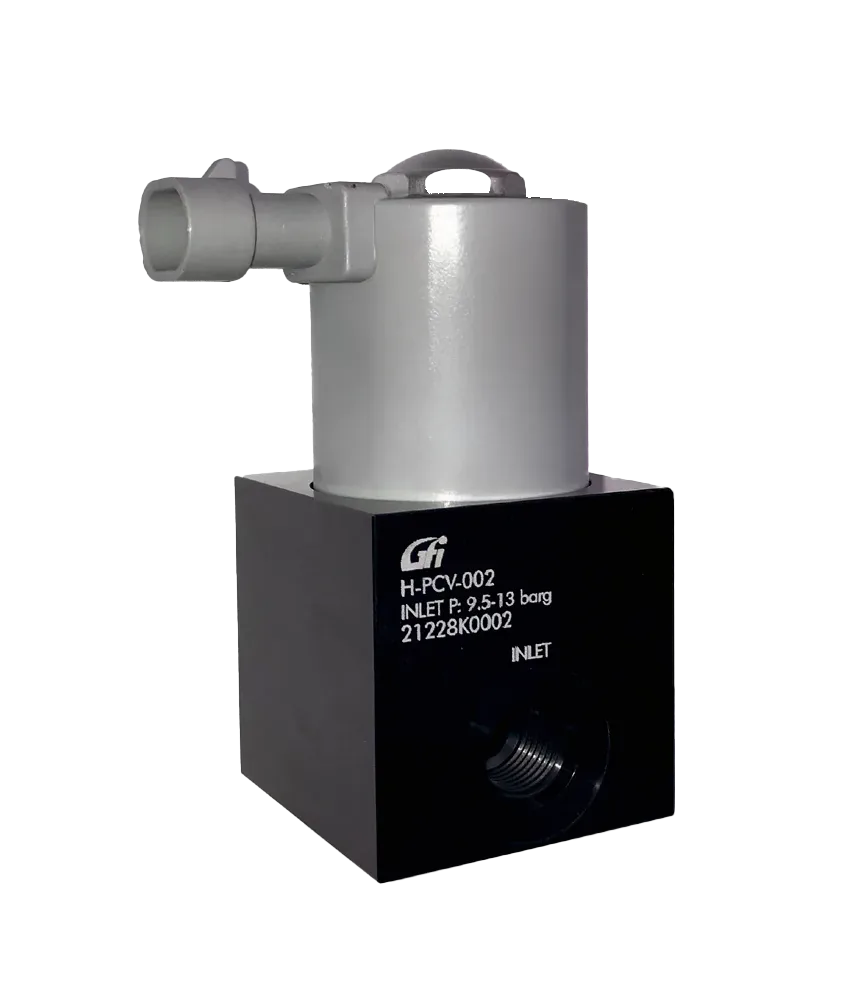

Designed for hydrogen applications with inlet pressures up to 1.4 MPa (g) (203 psig), the H-PCV series electronic pressure control valve is an advanced regulator that delivers stable outlet pressures under varying fuel cell flow demands and inlet pressures.
The H-PCV can be integrated with complementary components such as the H-IVL family of low-pressure isolation valves, pressure relief valves (PRVs), pressure sensors, filters, and other system options.
Design
- Electronically controlled regulation for consistent outlet pressure
- Reliable performance under fluctuating fuel cell flow and inlet pressures
- Available with integrated pressure sensor and filtration options
- Customizable pressure range configurations
Performance & Options
- Optional high-flow integrated pressure relief valve (PRV)
- Optional integrated isolation valve for added protection
- Support for safety components such as filters and check valves
- Electronically actuated for precise control
- Configurable with standard fuel cell ECU interfaces
H-PCV Series |
|
|---|---|
General Information |
|
| Application | Hydrogen low pressure regulator |
| Design | Electronically controlled proportional valve |
| Body Material | Aluminum, anodized |
| Fuel Type | Hydrogen |
Performance |
|
| Working Pressure | Up to 1.4 MPa (g); higher pressure customizations possible |
| Regulated Flow Rate | Configurable; > 4.1 g/s hydrogen (@ 20 °C) |
| Operating Temperature | -40 °C to 85 °C |
| Outlet Pressure | Configurable from 0.2 to 3 bar nominal; electronically controlled |
| Optional Pressure Relief Valve | Multiple settings available; to be determined with customer |
| Optional Filter (Replaceable) | 10 μm or 40 μm |
| Optional Pressure Sensor or Port | Customer defined |
| Coil | 12 V: 5.5 Ω @ 20 °C; 24 V: 22.5 Ω @ 20 °C; PWM controlled |
Connections |
|
| Inlet Thread Type | 9/16" – 18 UNF; other configurations possible |
| Outlet Thread Type | 9/16" – 18 UNF; other configurations possible |
