Designed for hydrogen applications with up to 1.4 MPa(g) (203 psig) inlet pressure. The H-PCM series electronic Pressure Control Module (PCM) integrates GFI’s Pressure Control Valve (PCV) and Low pressure Isolation Valve (IVL) along with a Pressure Relief Valve (PRV), filter and other customer defined features such as pressure sensor ports.
This system is an electronic pressure regulator that delivers stable outlet pressures under varying fuel cell flow demands and inlet pressures with an integrated low pressure isolation valve.
Each PCM is 100% functionally tested, Helium leak checked and serialized for complete traceability.
Design
- Available in a wide range of pressure configurations
Performance & Options
- Stable, electronically controlled outlet pressure
- Integrated low pressure isolation valve
- Integrated high-flow Pressure Relief Valve (PRV)
- Integrated filter (40 or 10 micron)
- Optional integrated pressure sensor and/or ports
H-PCM Series |
|
|---|---|
General Information |
|
| Application | Hydrogen low pressure regulator |
| Design | Electronically controlled proportional valve + isolation valve |
| Body Material | Aluminum, anodized |
| Fuel Type | Hydrogen |
Performance |
|
| Nominal Working Pressure | Up to 1.4 MPa (g); higher pressure customizations possible |
| Regulated Flow Rate | Configurable; > 4.1 g/s hydrogen |
| Working Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Outlet Pressure | Configurable from 0.2 to 3 barg nominal; electronically controlled |
| Pressure Relief Valve | Multiple settings available; to be determined with customer |
| Filter (Replaceable) | 10 μm or 40 μm |
| Optional Pressure Sensor or Port | Customer defined |
| Coil – Proportional Valve | 12 V: 5.5 Ω @ 20 °C; 24 V: 22.5 Ω @ 20 °C; PWM controlled |
| Coil – Isolation Valve |
12 V: 10.6 Ω @ 20 °C ± 5%; 24 V: 44 Ω @ 20 °C ± 5% AMP Super Seal 1.5 series, male, 2-way |
Connections |
|
| Inlet Thread Type | 9/16" – 18 UNF; other configurations possible |
| Outlet Thread Type | 3/4" – 16 UNF; other configurations possible |

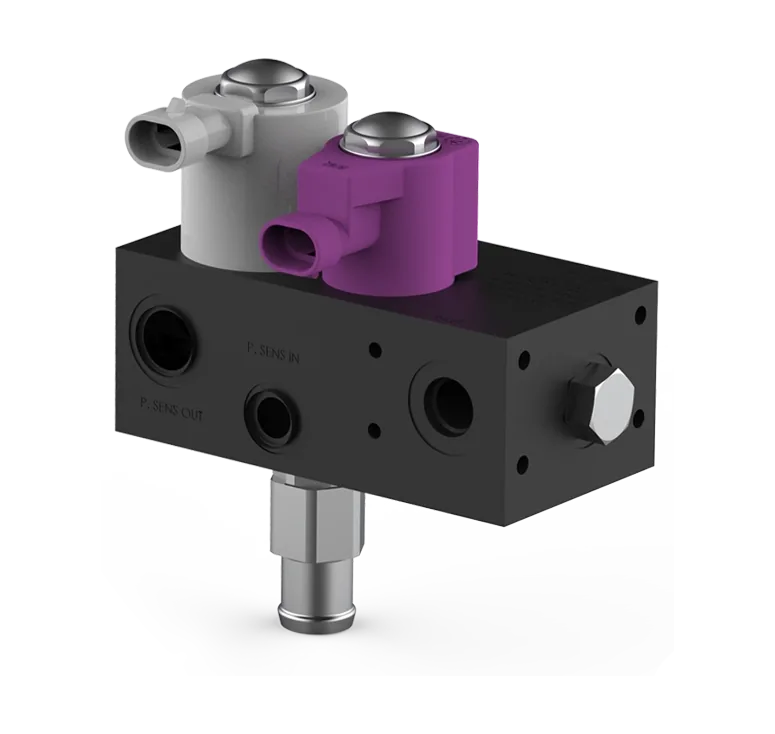

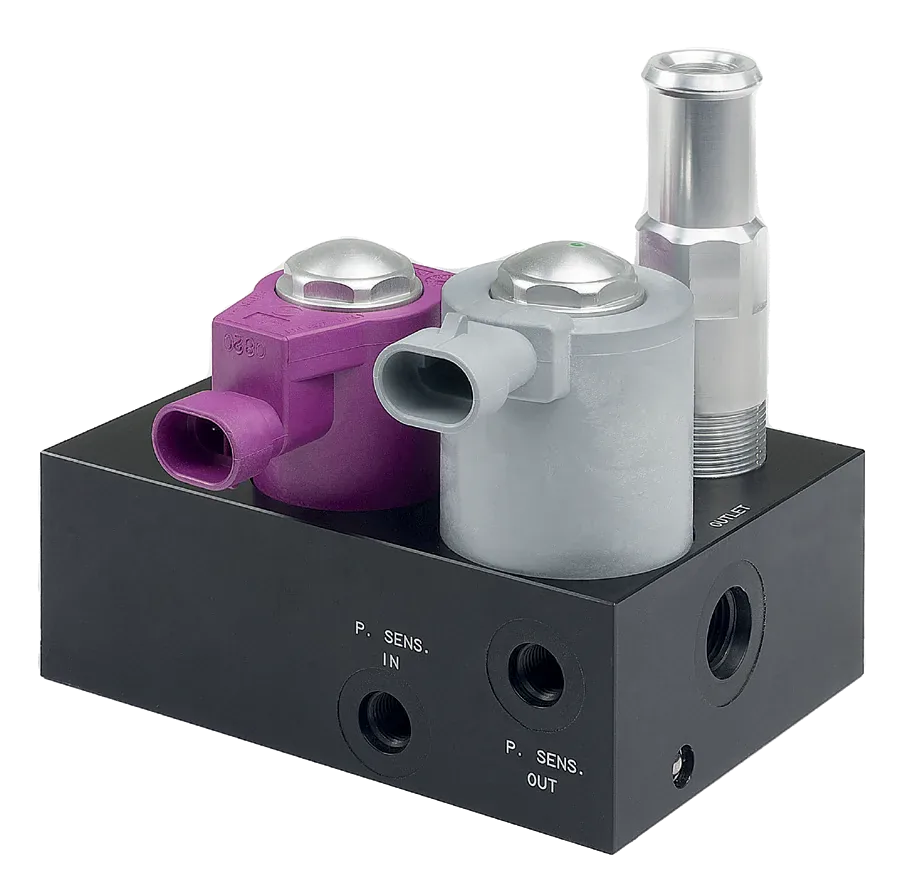

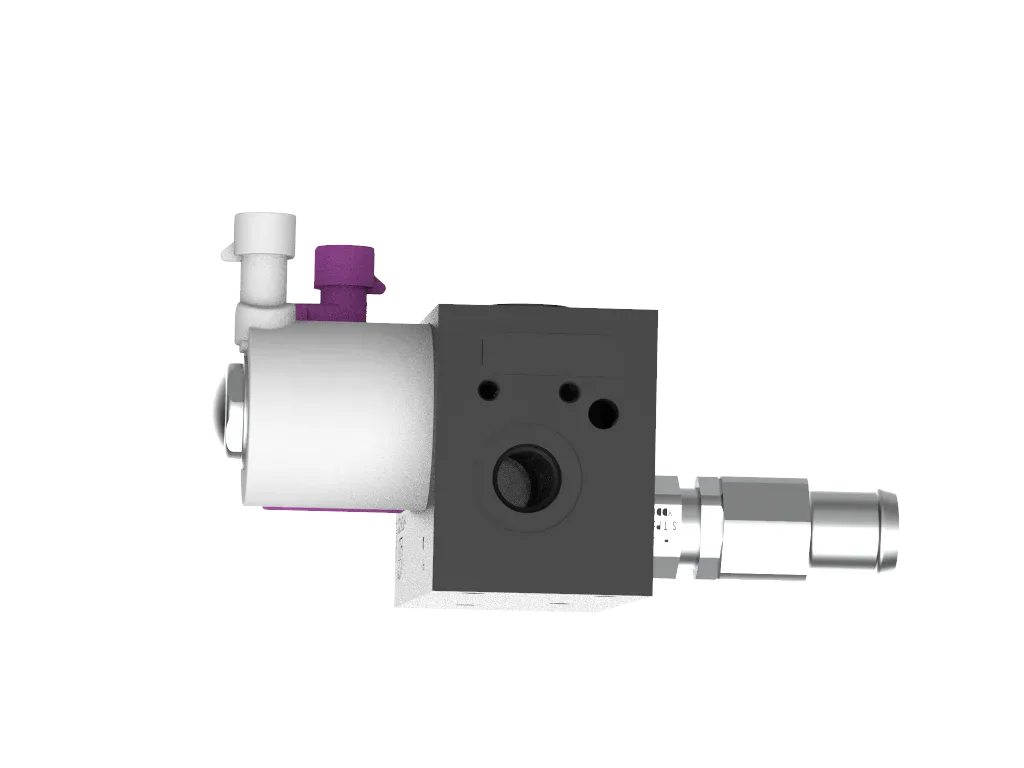

H-PCM-017 shown; other form factors available and customizations possible
