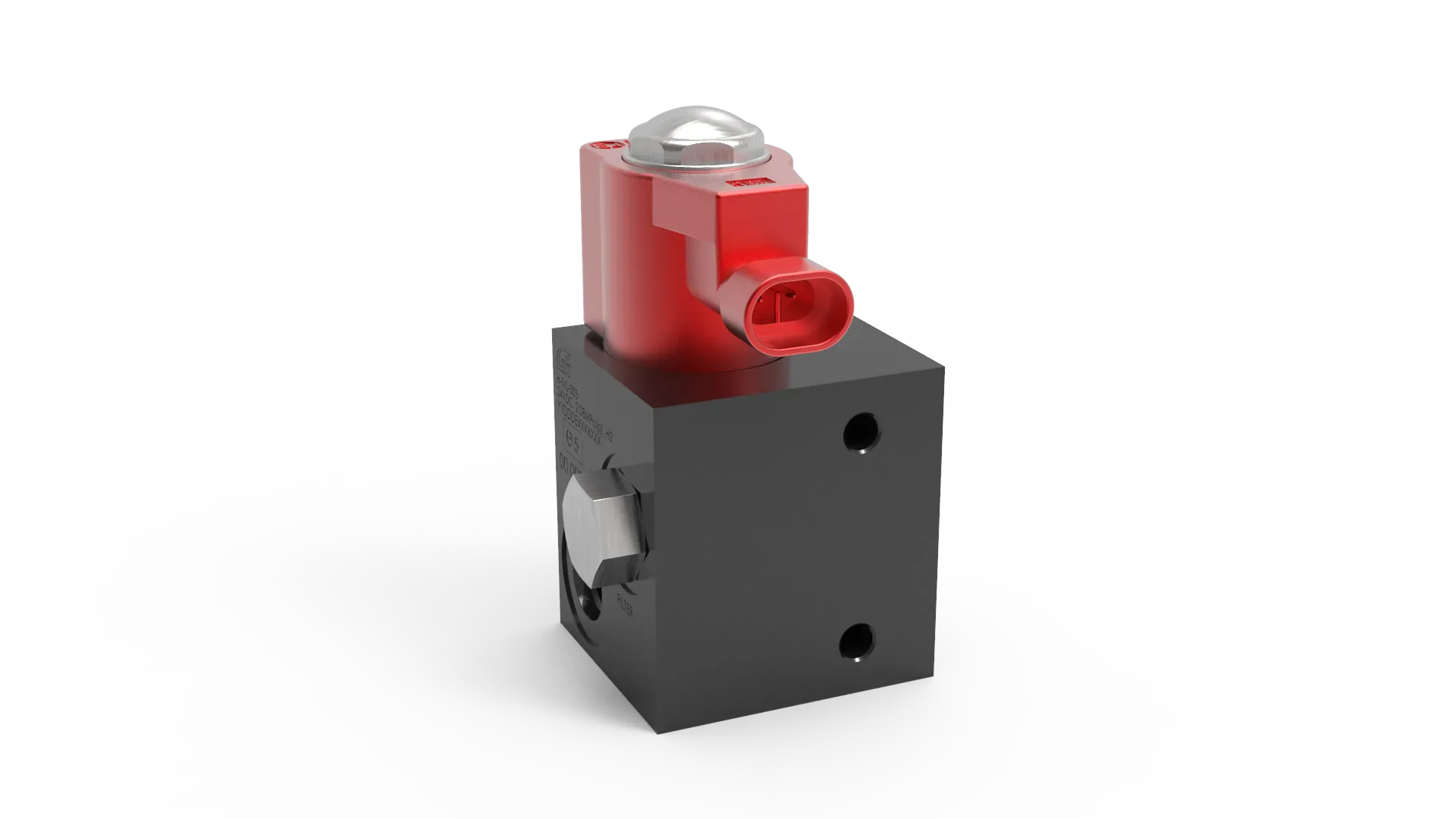

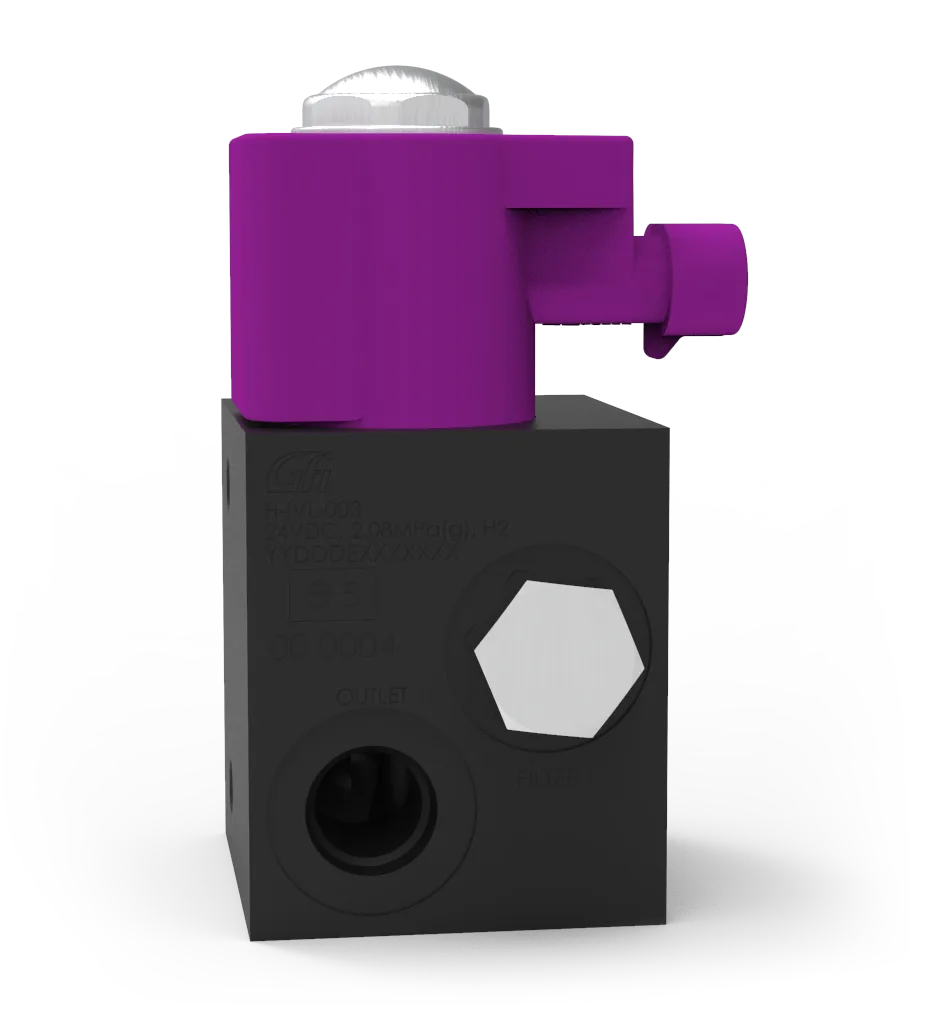

Designed for applications with up to 2 MPa(g) and 35 MPa(g) inlet pressure, GFI’s low and high-pressure isolation valves feature a proven solenoid design for reliable operation and superior performance. These valves integrate seamlessly into various systems, with mounting holes and 9/16 SAE inlet/outlet ports for easy installation.
Each valve is 100% functionally tested, Helium leak checked and serialized for complete traceability.

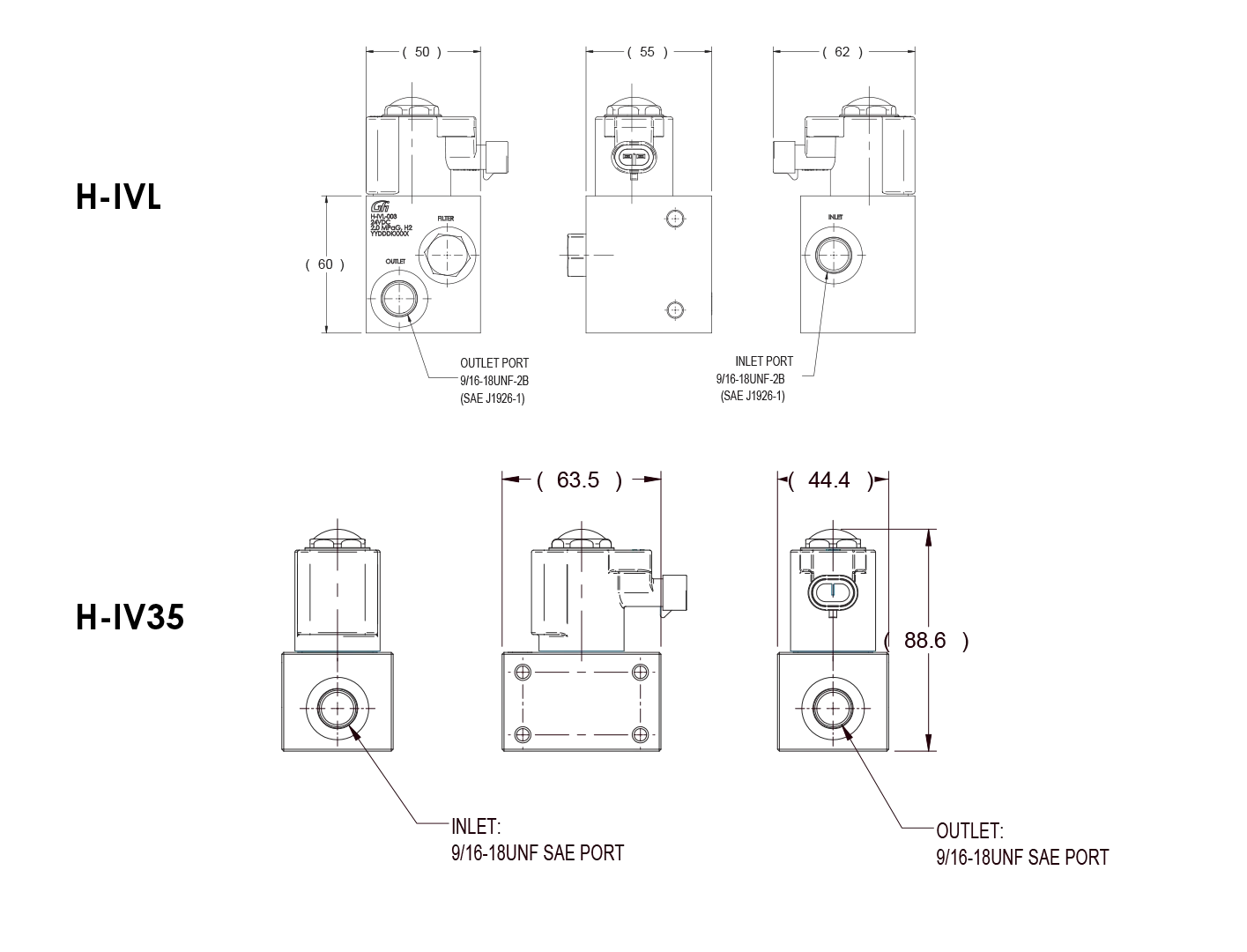

Design
- Low pressure 2 MPa(g) and high pressure 35 MPa(g)
- Compact solenoid valve design for system versatility
- 9/16 SAE inlet/outlet ports for seamless integration
- Includes mounting holes for easy installation
- Optional 40 micron integrated filter for added protection
Performance & Options
- Proven solenoid architecture ensures reliable actuation
- High flow capacity with low pressure drop characteristics
- Helium leak checked and serialized for traceability and quality assurance
- Available with 12 V or 24 V coils for OEM system flexibility
- Compatible with a wide range of hydrogen fuel system architectures
| H-IVL | H-IV35 | |
|---|---|---|
General Information |
||
| Application | Inline pressure isolation valve | |
| Body Material | Machined aluminum, anodized | |
| Fuel Type | Hydrogen | |
Performance |
||
| Nominal Working Pressure | N/A | 35 MPa(g) |
| Max Working Pressure | 2.08 MPa(g) | 43.8 MPa(g) |
| Operating Temperature | -40 °C to +85 °C | |
| Cv – Flow Rate | 0.75 | 0.49 |
Electrical |
||
| Coil Nominal Voltage | 12 V | 24 V |
| Nominal Coil Resistance @ 20 °C | 10.5 Ω | 44 Ω |
| Coil Nominal Power @ 20 °C | 13.7 W | 13 W |
Connections |
||
| Solenoid | Mating connector: AMP Superseal 1.5, 2-pin; 282080-1 | |
| Inlet/Outlet Port Type | 9/16"–18 UNF-2B; other configurations possible | |
| Options | A) Filter B) Pressure sensor port | |
