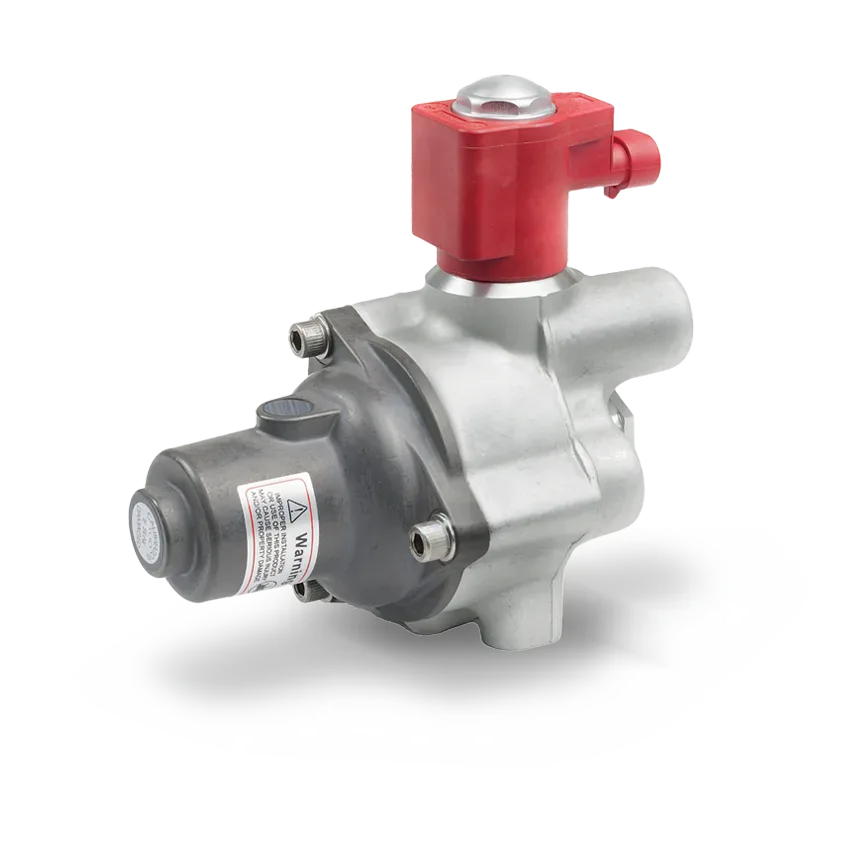

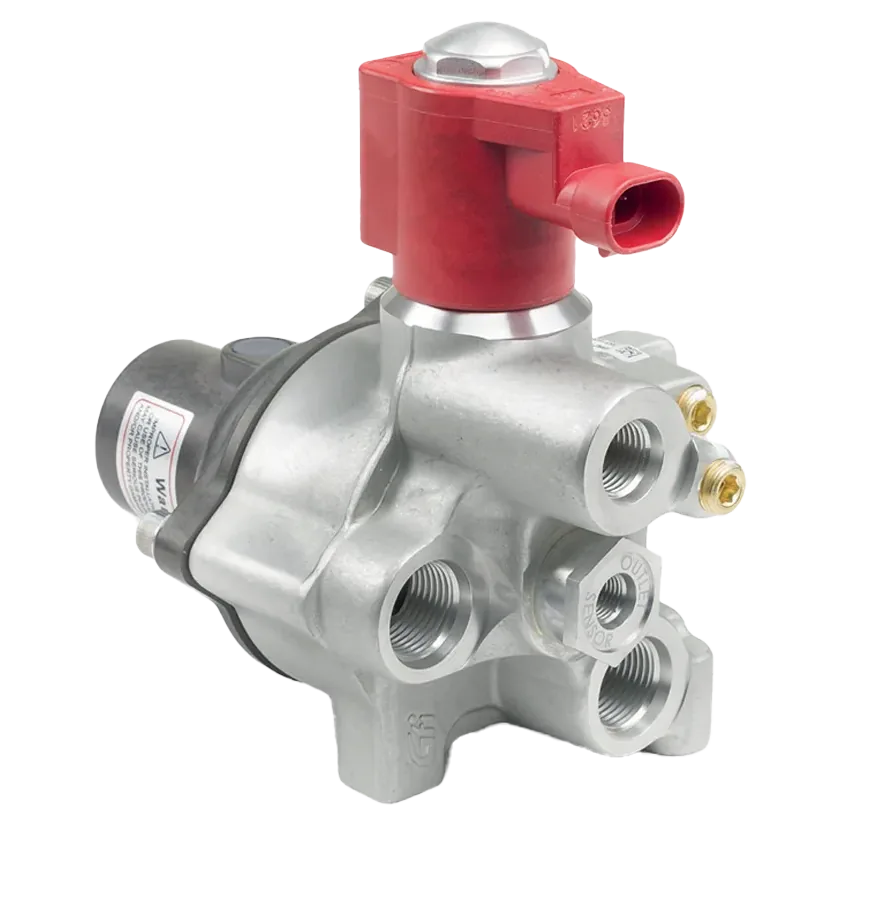

Designed for hydrogen applications up to 35 MPa (5,000 psi), the H-P35 Series Regulator delivers stable outlet pressures under varying fuel cell flow demands and inlet pressures.
This regulator benefits from 25 years of evolution in CNG applications to provide a reliable and cost-effective product.
Design
- Balanced regulator architecture for stable outlet pressure across all tank pressures
- Heavy-duty construction validated to over 1.8 million cycles
Performance & Options
- Multiple factory-set outlet-pressure configurations available
- Optional integrated high-pressure lock-off valve
- Optional integrated high-pressure sensor
- Integrated high-flow pressure relief valve (PRV)
H-P35 |
|||
|---|---|---|---|
General Information |
|||
| Application | Hydrogen high pressure regulator | ||
| Design | Balanced single stage, pintle and diaphragm type | ||
| Body Material | Forged aluminum | ||
| Fuel Type | Hydrogen | ||
Performance |
|||
| Max Service Pressure | 35 MPa (5,000 psi) | ||
| Regulated Flow Rate | Up to 9 g/s hydrogen | ||
| Outlet Pressure | Factory adjustable: 200–1,600 kPa (29–232 psig) | ||
| Operating Temperature | -40 °C to 85 °C (-40 °F to 185 °F) | ||
| Pressure Relief Valve | Multiple settings available: 300–2,500 kPa (43–363 psig) | ||
| Filter (Replaceable) | 40 µm, 99% efficiency | ||
| Pressure Sensor | Customer defined | ||
| Solenoid | Voltage | 12 V | 24 V |
| Current Draw | 1.14 A | 0.54 A | |
| Control | Saturated | ||
Connections |
|||
| Inlet Thread Type | 9/16" – 18 UNF | ||
| Outlet Thread Type | 3/4" – 16 UNF | ||
| PRV Interface | 9/16"–18 UNF-2B; other options available | ||
| Electrical Connector (Solenoid) | Mating connector: AMP Superseal 1.5, 2-pin; 282080-1 | ||
